High Thermal Conductivity Artificial Graphite Sheet Heat Treatment

Introduction

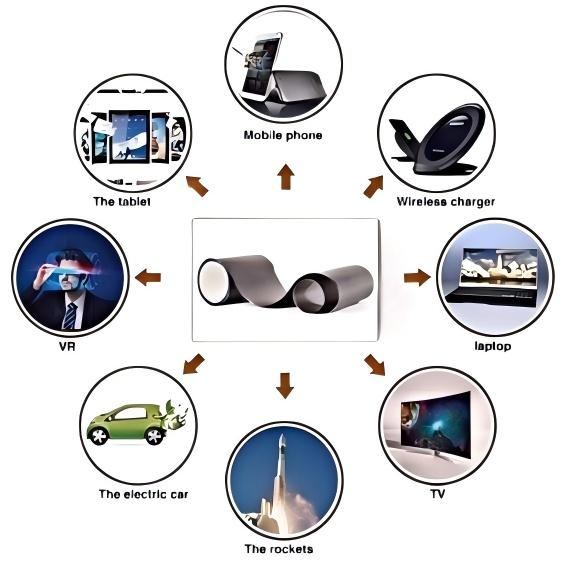

High thermal conductivity artificial graphite sheets are critical materials in modern electronics, energy storage, and thermal management systems. These sheets are widely used in smartphones, laptops, electric vehicles (EVs), and LED lighting due to their exceptional heat dissipation, lightweight properties, and flexibility. To achieve optimal performance, graphite sheets must undergo precise carbonization and graphitization heat treatment processes. Cxinduction™, a leading global supplier of high-temperature equipment, provides the industry’s most advanced dewaxing carbonization furnaces and ultra-high-temperature graphitization furnaces, which have been successfully deployed in hundreds of production lines worldwide.

Key Heat Treatment Processes for Artificial Graphite Sheets

  1. Carbonization (Dewaxing) Process

Purpose: Removes volatile impurities and converts polymer-based precursors (e.g., polyimide films) into carbon-rich structures.

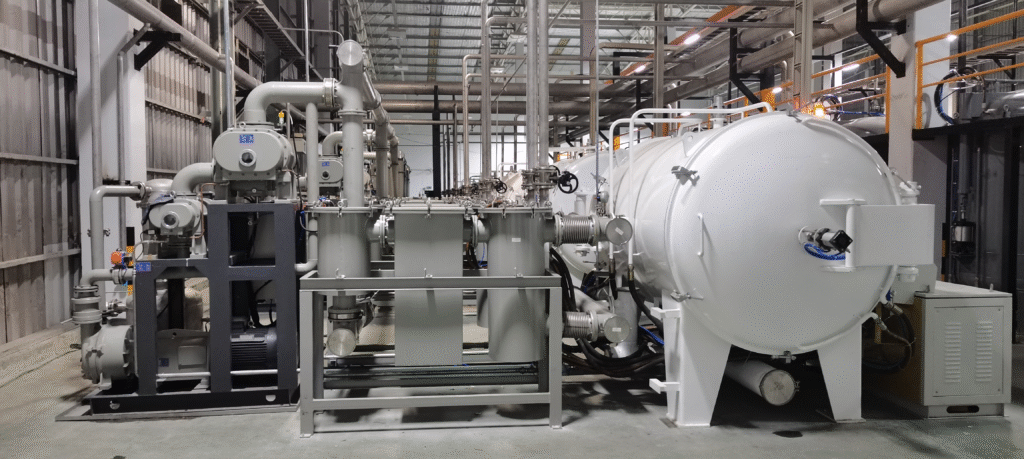

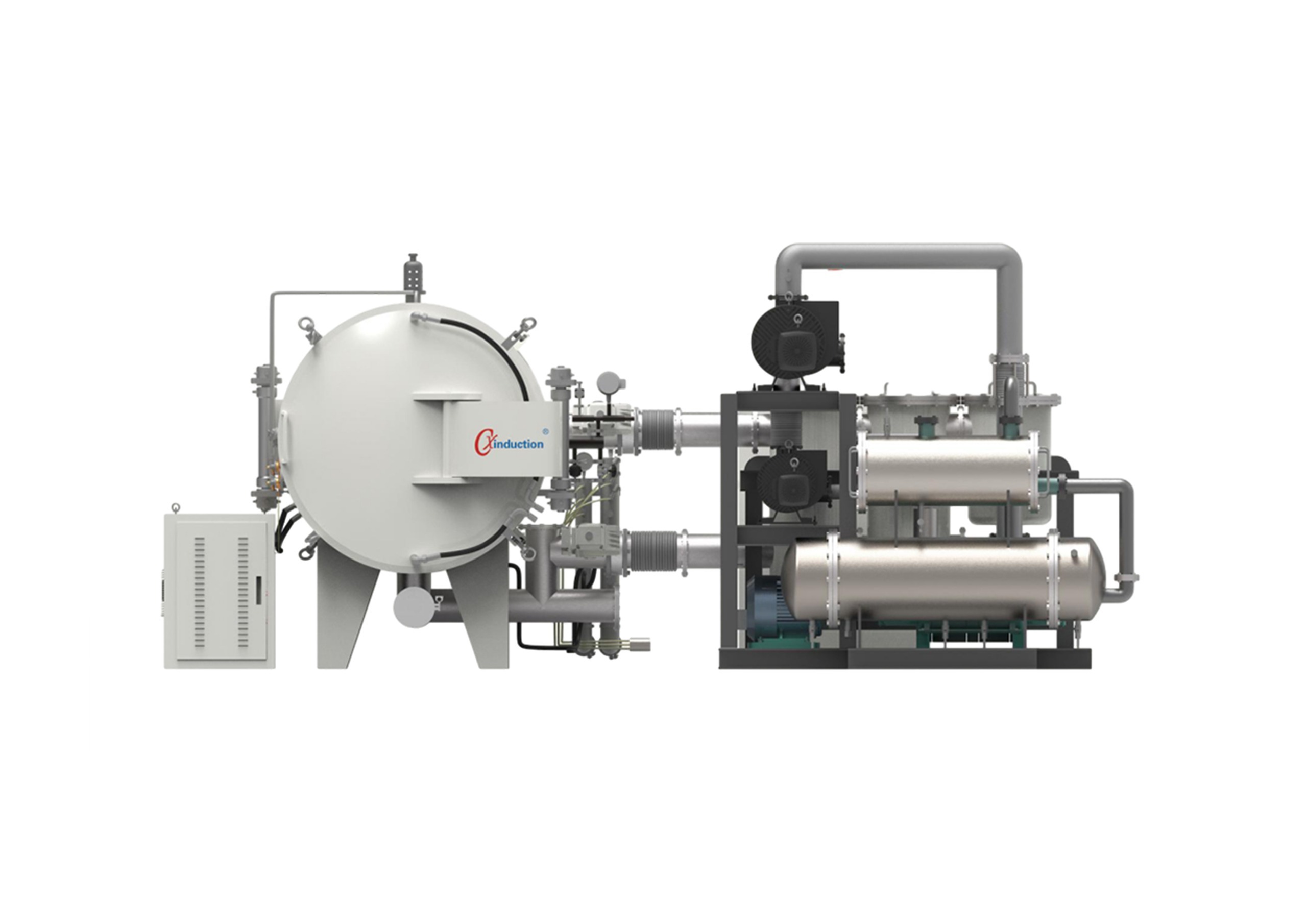

Equipment: Cxinduction™ Dewaxing Carbonization Furnace

Temperature Range: 800–1900℃ (precise control within ±1℃).

Atmosphere: Vacuum

Uniform Heating: Multi-zone temperature control ensures consistent carbonization.

Filter: Three-stage filtration system



Challenges:

Avoiding cracks or warping due to uneven heating.

Ensuring complete impurity removal for high-purity carbon structures.



  1. Ultra-High-Temperature Graphitization

Purpose: Converts amorphous carbon into highly ordered graphite crystals, enhancing thermal conductivity (up to 1500–2000 W/m·K).

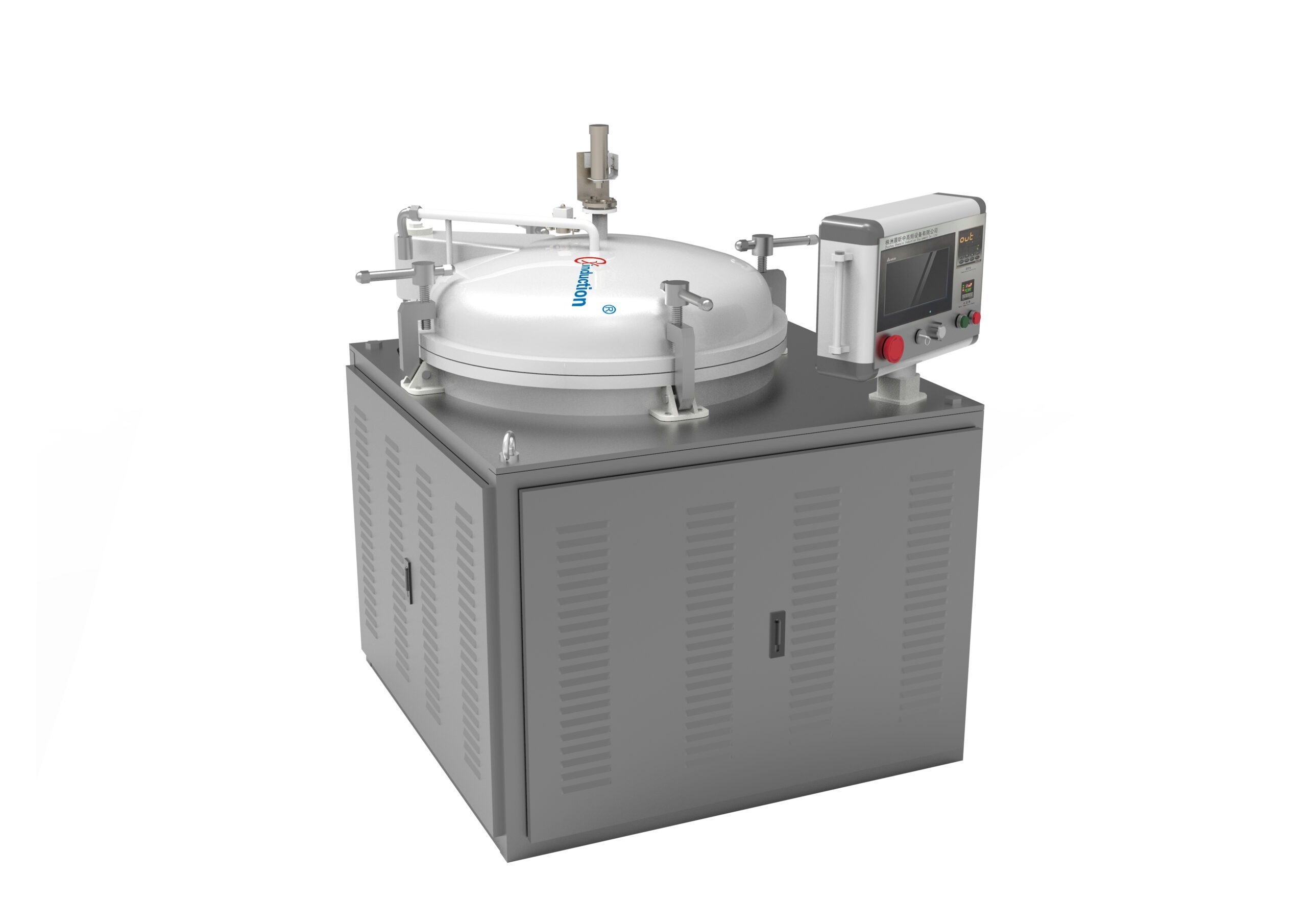

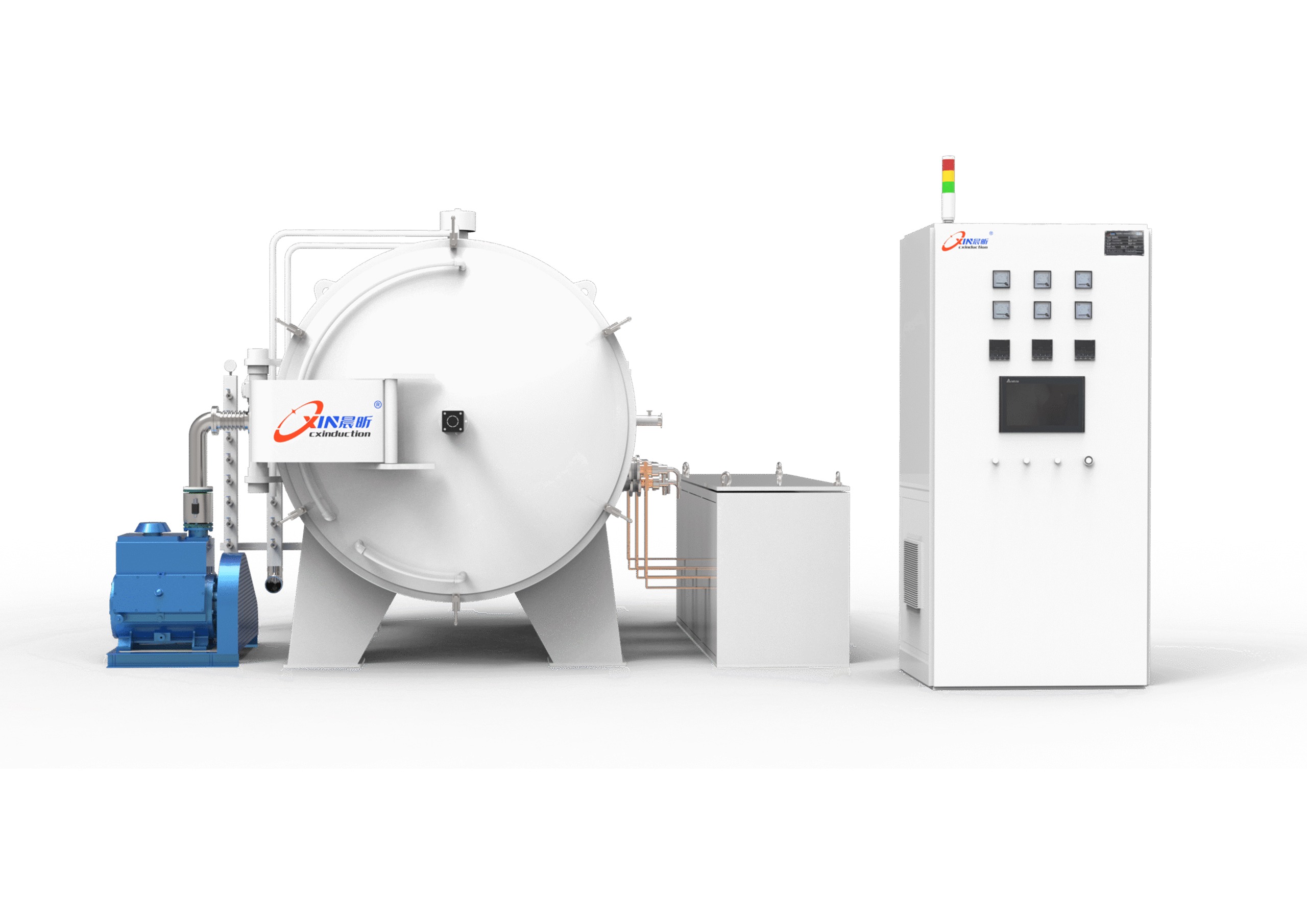

Equipment: Cxinduction™ Ultra-High-Temperature Graphitization Furnace

Temperature Range: 2500–3000℃ (with ±5℃ uniformity).

Heating Elements: High-purity graphite for long lifespan.

Vacuum or Inert Gas: Prevents contamination and ensures high crystallinity.



Challenges:

Maintaining extreme temperatures without degrading furnace components.

Achieving uniform graphitization for consistent thermal performance.

Why Choose Cxinduction’s Heat Treatment Equipment?

  1. Industry-Leading Temperature Control



Fast heating/cooling rates (programmable for different material grades).



  1. Superior Furnace Durability & Efficiency

Advanced insulation materials reduce energy consumption by 20–30%.

Modular design allows easy maintenance and long-term reliability.



  1. Smart Automation & Data Tracking

PLC-controlled process with real-time monitoring.

Data logging ensures batch-to-batch consistency.



  1. Proven Market Leadership

Hundreds of installed units worldwide – trusted by top graphite sheet manufacturers.

24/7 technical support for uninterrupted production.

Applications of Heat-Treated Graphite Sheets

  1. Consumer Electronics

Smartphones & Tablets: Heat spreaders for CPUs and batteries.

Laptops: Thermal management in high-performance GPUs.



  1. Electric Vehicles (EVs) & Energy Storage

Battery Packs: Prevents overheating in Li-ion batteries.

Power Electronics: Cooling for inverters and motors.



  1. LED & High-Power Electronics

Heat sinks for high-brightness LEDs.

5G Base Stations: Thermal interface materials (TIMs).



  1. Aerospace & Defense

Satellite components requiring lightweight, high-thermal-conductivity materials.



Success Stories: Global Recognition

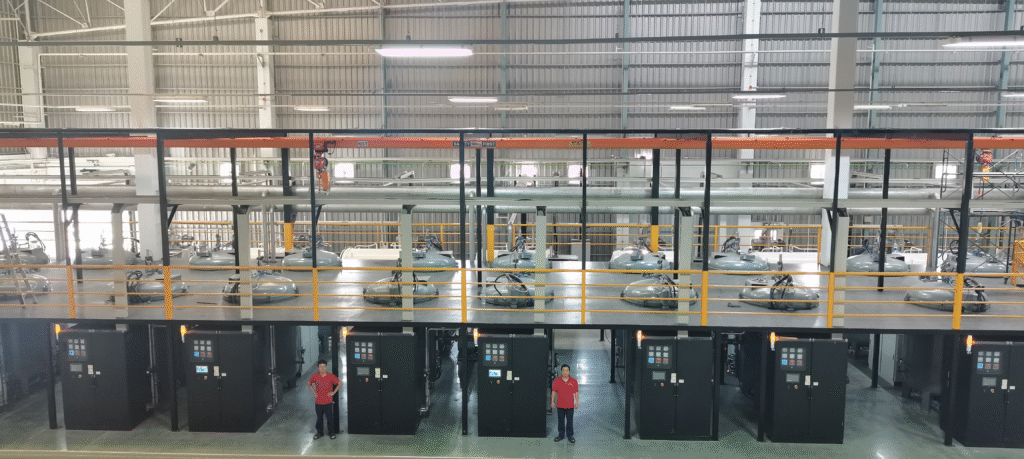

Cxinduction’s carbonization and graphitization furnaces are used by leading graphite sheet suppliers in China, Japan, South Korea,etc, enabling:

✔ Higher thermal conductivity (20–30% improvement vs. conventional furnaces).

✔ Lower energy costs due to optimized heating efficiency.

✔ Zero warping/cracking – near-perfect yield rates.





Conclusion

The production of high-performance artificial graphite sheets relies on precision heat treatment with advanced carbonization and graphitization furnaces. Cxinduction’s dewaxing carbonization furnace and ultra-high-temperature graphitization furnace provide unmatched temperature control, energy efficiency, and process repeatability, making them the preferred choice for global manufacturers.
