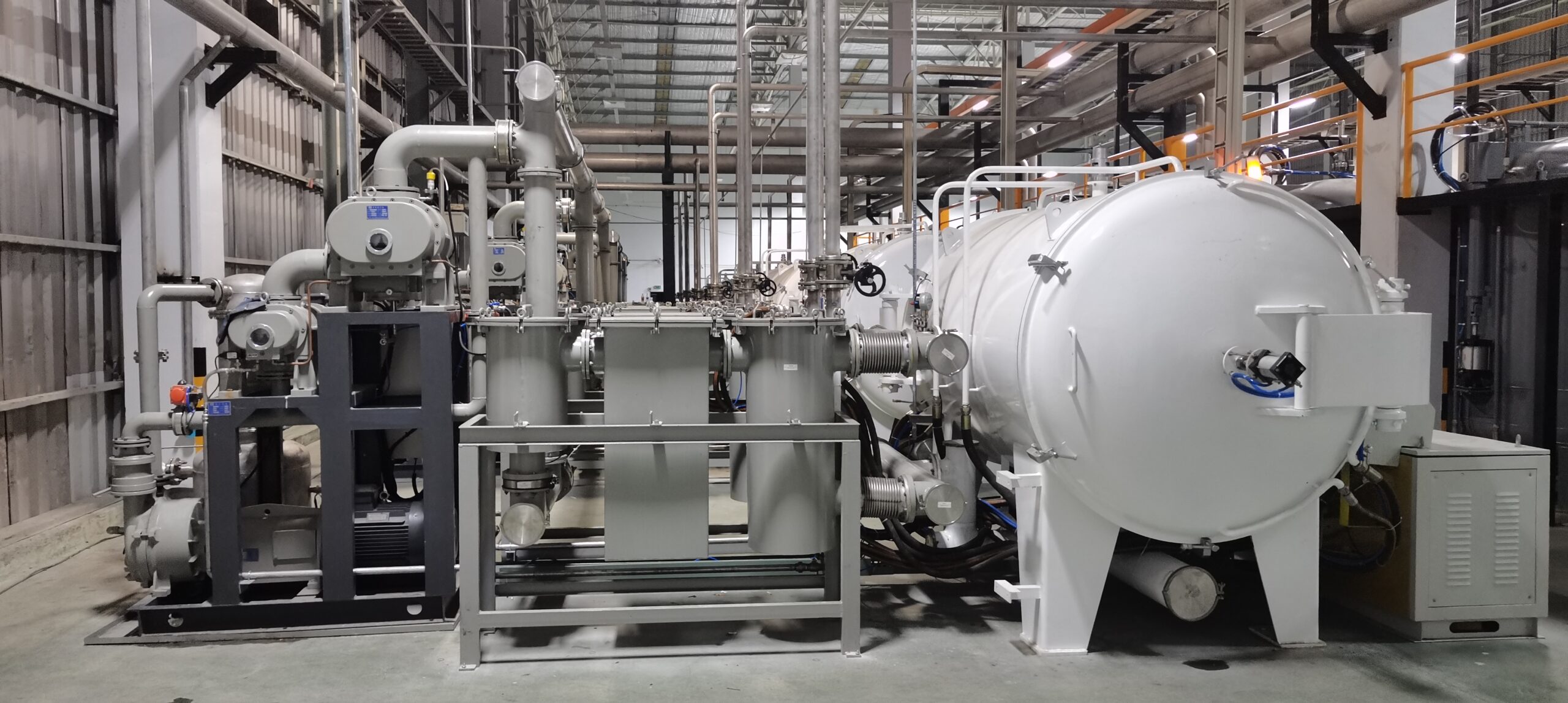

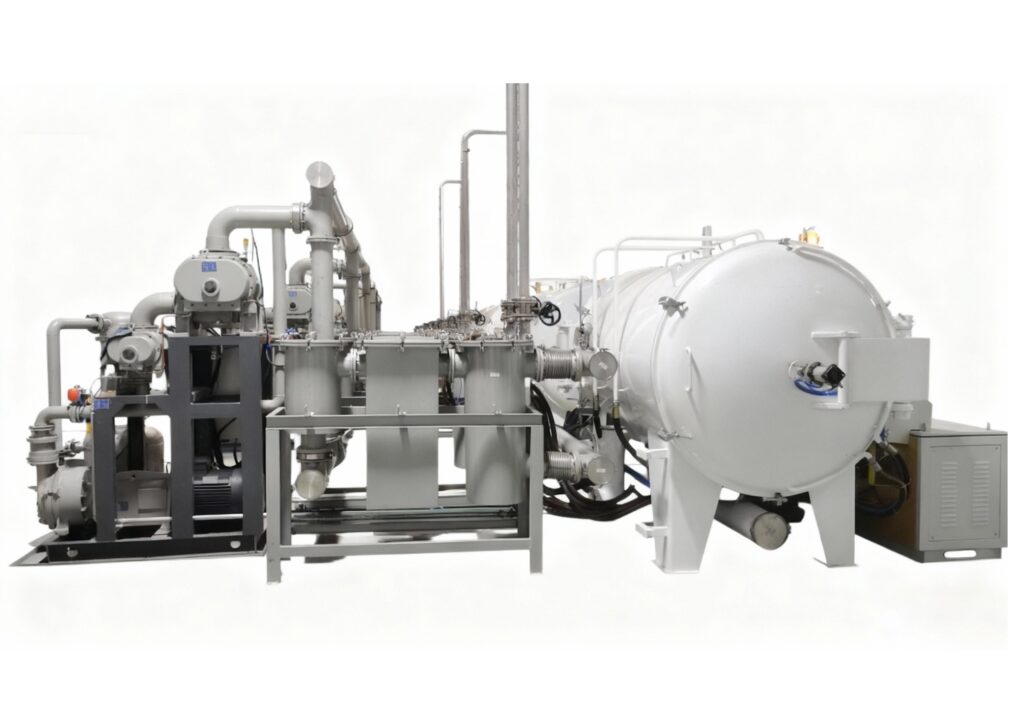

2000°C Vacuum Sintering Furnace For Metal Powders

2000°C working · 2100°C design. Graphite resistance furnace for metal-powder sintering. Atmosphere: vacuum or argon. Capacity: five models, 54–735 L. Work zone: 300 × 300 × 600 to 700 × 700 × 1500 mm.

2000°C Vacuum Sintering Furnace for Metal Powders

Vacuum Sintering for Metal Powders

The SJ series uses resistance heating for selected metal powder parts under vacuum or argon. Confirm hot-zone compatibility and the sintering cycle for each powder and binder system.

Need a solution for your project?

Typical Applications

Tantalum, tungsten, molybdenum and compatible titanium-alloy components.
Porous filtration parts and other powder-metallurgy products after process review.

Five Listed Models

SJ30/60C-3 Work zone 300 × 300 × 600 mm; 54 L; 65 kW.
SJ40/80C-3 Work zone 400 × 400 × 800 mm; 128 L; 130 kW.
SJ50/120C-3 Work zone 500 × 500 × 1200 mm; 300 L; 220 kW.
SJ60/150C-3 Work zone 600 × 600 × 1500 mm; 540 L; 250 kW.
SJ70/150C-3 Work zone 700 × 700 × 1500 mm; 735 L; 350 kW.

Shared Listed Parameters

Temperature Maximum design temperature 2100°C; maximum working temperature 2000°C
Temperature Uniformity ±10°C over the stated 1000–1700°C measurement range
Vacuum 5 Pa in empty, cold, clean conditions; argon operation available
Cooling & Supply Cooling-water pressure 1.5–2.5 bar; three-phase supply subject to configuration
Control Automatic / semi-automatic / manual, with safety alarms and interlocks

Process note: Heating rate and achieved vacuum depend on load and process conditions. Optional chiller and lower-temperature measurement can be discussed. Send material, part dimensions, batch weight, target temperature, atmosphere and utilities to request a configuration and quotation.
