2900°C Battery Anode Graphitization Furnace

Battery Anode Powder Graphitization

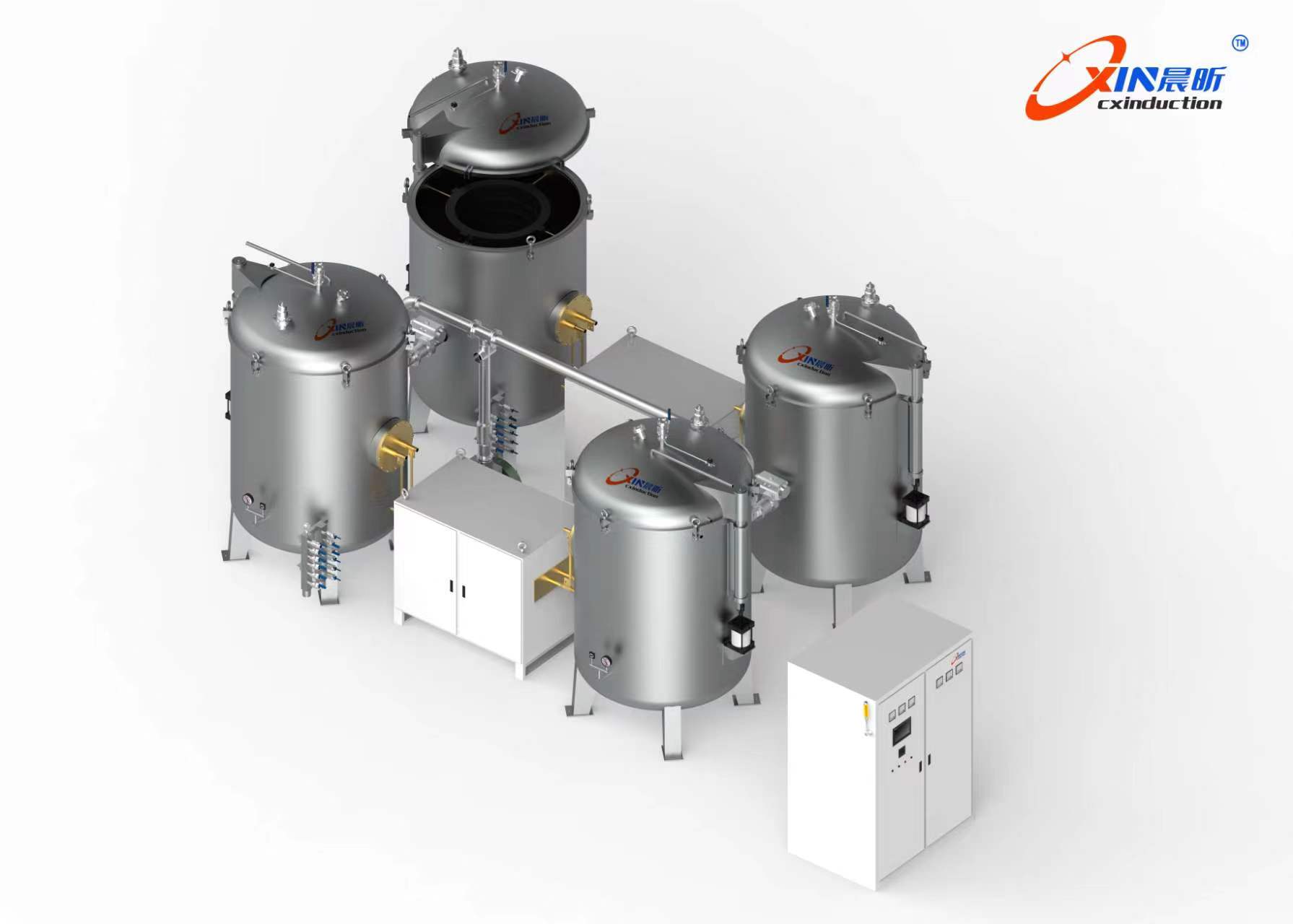

Vertical top-loading batch induction furnace for carbon powder and synthetic graphite anode process development or production. Final purity and graphitization depend on feedstock and process conditions; provide your specification for engineering review.

Models and work zones

• CX-GF20/30VT: Φ200 × 300 mm, 9 L listed capacity, 80 kW, 2000 Hz (lab)
• CX-GF30/50VT: Φ300 × 500 mm, 35 L, 120 kW, 2000 Hz (lab)
• CX-GF40/AM: Φ400 × 1000 mm, 125 L, 150 kW, 2000 Hz
• CX-GF50/AM: Φ500 × 1000 mm, 196 L, 200 kW, 1500 Hz
• CX-GF60/AM: Φ600 × 1600 mm, 452 L, 300 kW, 1500 Hz

Shared specifications

• Maximum design temperature: 3000°C; working temperature: 2900°C
• Temperature uniformity: ±10°C, stated for 1000–1600°C
• Argon inert atmosphere; vacuum operation is stated only below 2200°C
• Vacuum configuration and three-phase supply voltage can be customized
• Cooling water pressure: 1.5–2.5 bar

Options and quotation

Ask about a chiller, gas purifier, graphite container and low-temperature measurement option. Send the carbon feedstock, batch mass and dimensions, target process profile, atmosphere and required test results. Request a battery anode furnace proposal →
